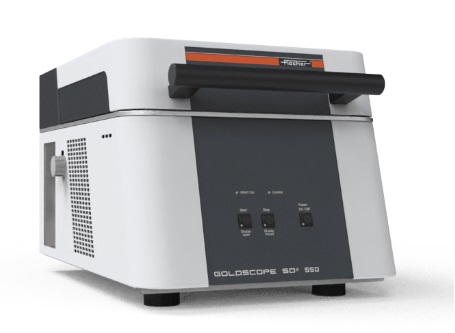

GOLDSCOPE SD®

Analysis, value determination and authenticity check.

With the GOLDSCOPE SD® family, Fischer offers tailored solutions for the non-destructive testing of gold and precious metals. All GOLDSCOPE SD® models are equipped with the WinFTM® software, which has the most important measuring tasks for the testing of gold and precious metals.

The GOLDSCOPE SD® family offers the right solution for your testing needs: Entry-level instruments with silicon PIN detectors are intended for use in stores and pawnshops to check the composition of jewelry and dental gold. The GOLDSCOPE SD® 510 model is particularly space-saving: the laptop can be easily placed on top of the device.

For testing laboratories and jewelry manufacturers, the series offers instruments with a silicon drift detector and changeable apertures. Thus, the GOLDSCOPE SD® family also meets sophisticated demands.

Features
∙ Compact and robust benchtop instrument for fast, cost-effective and non-destructive analysis of jewelry, coins and precious metals
∙ Hardware and software aligned to measuring tasks related to gold and precious metals
∙ Especially space-saving with the GOLDSCOPE SD® 510 version ∙ Measuring direction with measuring bottom up
∙ 4-fold changeable apertures (GOLDSCOPE SD® 550)
∙ 6-fold changeable filter (GOLDSCOPE SD® 550)
∙ Various semiconductor detectors ensure very good detection accuracy and high resolution: silicon PIN
and silicon drift detector
∙ DPP+ digital pulse processor for higher count rates and significantly reduced measuring times
∙ Fully protected instrument with type approval according to current radiation protection legislation
